One dimensional examples

A second order equation

Consider the following equation:

\[ \left\{ \begin{array}{l} -\dfrac{\partial^2}{\partial x^2}u(x) + u(x) = f(x) \textrm{ for } x \in (0, 1) \\ u(0) = u(1) = 0. \end{array} \right.\]

using SymFEL
using SymPy
using LinearAlgebra
using SparseArrays

using PyPlot
close("all")

Discretization parameters

N = 101; # number of nodes
dx = 1 / (N - 1); # discretization step
nodes = range(0, stop=1, length=N);
bound_nodes = [1, N];

Exact solution

We take \( f = (1 + \pi^2)x \sin(\pi x) - 2\pi \cos(\pi x)\). For this choice of second member the exact solution is given by \( u(x) = x \sin(\pi x)\).

# exact solution
u_exact = nodes .* sin.(pi * nodes);
# right hand
f = (1 + pi^2) * nodes .* sin.(pi * nodes) - 2 * pi * cos.(pi * nodes);

Finite element matrices

elem_K = SymFEL.get_lagrange_em(1, 1, 1);
elem_M = SymFEL.get_lagrange_em(1, 0, 0);
elem_K_dx = convert(Matrix{Float64}, elem_K.subs(h, dx));
elem_M_dx = convert(Matrix{Float64}, elem_M.subs(h, dx));

K = SymFEL.assemble_1d_FE_matrix(elem_K_dx, N, intNodes1=0, intNodes2=0, dof1=1, dof2=1);
M = SymFEL.assemble_1d_FE_matrix(elem_M_dx, N, intNodes1=0, intNodes2=0, dof1=1, dof2=1);

F = M * f;

Boundary conditions

tgv = 1e100
A = K + M
A[bound_nodes, bound_nodes] += tgv*sparse(Matrix{Float64}(I, 2, 2));

F[bound_nodes] = zeros(2);

Solve the linear system

u = A \ F;

Graphic representation

plot(nodes, u_exact);
plot(nodes, u);
legend(["Exact solution", "Approximate solution"]);

err = u - u_exact;
println("L2 error = ", sqrt(err' * (M * err)))
println("H1 error = ", sqrt(err' * (K * err)))

L2 error = 3.1925577598494035e-5
H1 error = 0.00014148971692742057

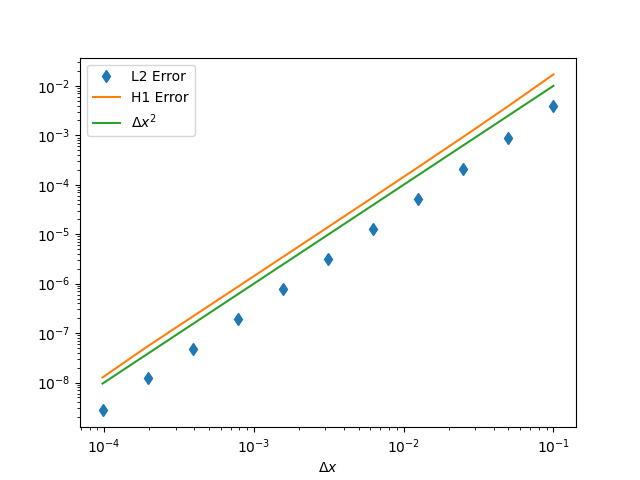

Study of the error

NV = 10 * 2 .^ (0:10)
EL2 = zeros(11)
EH1 = zeros(11)
i = 1
for N = NV
    global i
    local dx = 1 / (N - 1); # discretization step
    local nodes = range(0, stop=1, length=N);
    local bound_nodes = [1, N];

    # exact solution
    local u_exact = nodes .* sin.(pi * nodes);
    # right hand
    local f = (1 + pi^2) * nodes .* sin.(pi * nodes) - 2 * pi * cos.(pi * nodes);

    local elem_K_dx = convert(Matrix{Float64}, elem_K.subs(h, dx));
    local elem_M_dx = convert(Matrix{Float64}, elem_M.subs(h, dx));

    local K = SymFEL.assemble_1d_FE_matrix(elem_K_dx, N, intNodes1=0, intNodes2=0, dof1=1, dof2=1);
    local M = SymFEL.assemble_1d_FE_matrix(elem_M_dx, N, intNodes1=0, intNodes2=0, dof1=1, dof2=1);

    local F = M * f;

    # boundary conditions
    local tgv = 1e100
    local A = K + M
    A[bound_nodes, bound_nodes] += tgv*sparse(Matrix{Float64}(I, 2, 2));

    F[bound_nodes] = zeros(2);

    local u = A \ F;

    local err = u - u_exact;

    EL2[i] = sqrt(err' * M * err)
    EH1[i] = sqrt(err' * K * err)

    i += 1
end

figure()
loglog(1 ./ NV, EL2, "d")
loglog(1 ./ NV, EH1)
loglog(1 ./ NV, (1 ./ NV).^2)
xlabel(L"$\Delta x$")
legend(["L2 Error", "H1 Error", L"$\Delta x^2$"])

A fourth order equation

Consider the following problem. Given \(f \in C([0, 1])\), find a function \(u\) satisfying

\[ \left\{ \begin{array}{l} \dfrac{\partial^4}{\partial x^4}u(x) = f(x) \textrm{ in } (0, 1) \\ u(0) = u(1) = 0 \\ u^\prime(0) = \pi, \qquad u^\prime(1) = -\pi. \end{array} \right.\]

using SymFEL
using SymPy
using LinearAlgebra
using SparseArrays

using PyPlot
close("all")

Discretization

N = 101; # number of nodes
dx = 1 / (N - 1); # discretization step
nodes = range(0, stop=1, length=N);
bound_nodes = [1, N];

Exact solution

# exact solution
u_exact = sin.(pi*nodes);
ud_exact = pi * cos.(pi*nodes)
# right hand
f = pi^4 * sin.(pi * nodes);

Finite element matrices

elem_K = SymFEL.get_hermite_em(3, 2, 2);
elem_M = SymFEL.get_em(3, 1, 0, 0; fe1="Hermite", fe2="Lagrange")
elem_K_dx = convert(Matrix{Float64}, elem_K.subs(h, dx));
elem_M_dx = convert(Matrix{Float64}, elem_M.subs(h, dx));

K = SymFEL.assemble_1d_FE_matrix(elem_K_dx, N, intNodes1=0, intNodes2=0, dof1=2, dof2=2);
M = SymFEL.assemble_1d_FE_matrix(elem_M_dx, N, intNodes1=0, intNodes2=0, dof1=2, dof2=1);

# f is approached by an P1 function
F = M * f;

Boundary conditions

tgv = 1e100
KB = copy(K)
KB[2*bound_nodes .- 1, 2*bound_nodes .- 1] += tgv*sparse(Matrix{Float64}(I, 2, 2));
KB[2*bound_nodes, 2*bound_nodes] += tgv*sparse(Matrix{Float64}(I, 2, 2));

F[2*bound_nodes .- 1] = zeros(2);
F[2] = pi * tgv
F[2*N] = -pi * tgv

Solve the linear system

u = KB \ F;

Graphic representation

plot(nodes, u_exact);
plot(nodes, u[1:2:2*N-1]);
legend(["Exact solution", "Approximate solution"]);

Error evaluation

We choose the following norm for the error \( \|e\| = \left(\int_0^1 |f^{\prime\prime}(x)|^2 dx\right)^\frac{1}{2}\)

U_exact = zeros(2*N)
U_exact[1:2:2*N-1] = u_exact
U_exact[2:2:2*N] = ud_exact
err = u - U_exact;
println("H2 error = ", sqrt(err' * K * err))

H2 error = 0.00024981230048157135
